Multi-Level Parking Structure
Hero image is representative of project type. Actual project photos available upon request.
Project Scope
Six-level precast-hybrid parking structure with structural steel framing for stair cores, elevator shafts, canopy entries, and façade screen panels.
Key Challenge
High-volume repetitive framing with tight tolerance requirements
Parking structures are deceptively complex — repetitive geometry still demands precise camber, connection, and bearing tolerances to avoid costly erection corrections. Our quality procedures flagged four camber discrepancies in the pre-fabrication review cycle, saving the fabricator three weeks of remediation.
Deliverables
- Full erection drawings
- Stair/elevator core shop packages
- Canopy and screen panel details
- Anchor bolt coordination with precast supplier
- 1,400+ shop drawing sheets
Project Imagery

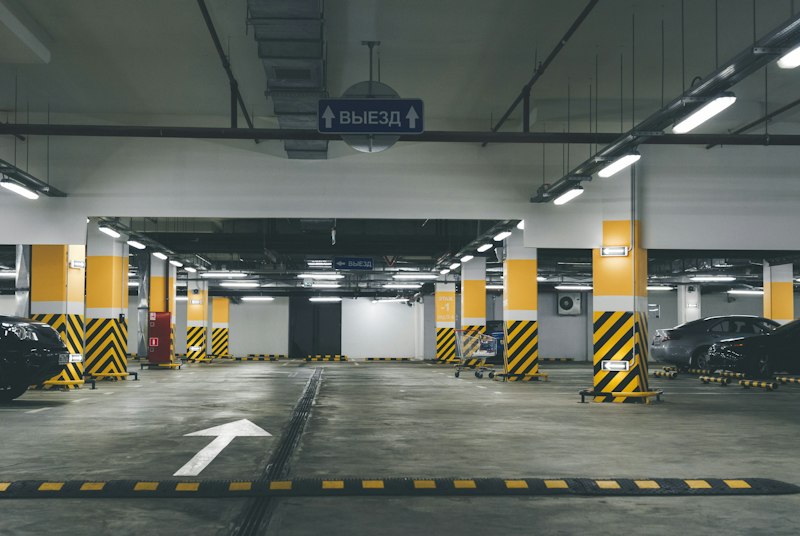

Images shown are representative of this building type and structural scope. Project-specific photos available on request.
Project Details
- Building Type
- Parking Garage
- Location
- Riverside, CA
- Structural Tonnage
- ~1,100 tons
- Delivery Timeline
- 14 weeks
- Software Used
- Tekla StructuresAutoCAD
