Structural Steel Detailing Services

We offer a full range of detailing services in structural and miscellaneous steel. By using advanced 3D technology, we are able to give our customers:

Detailed erection plans

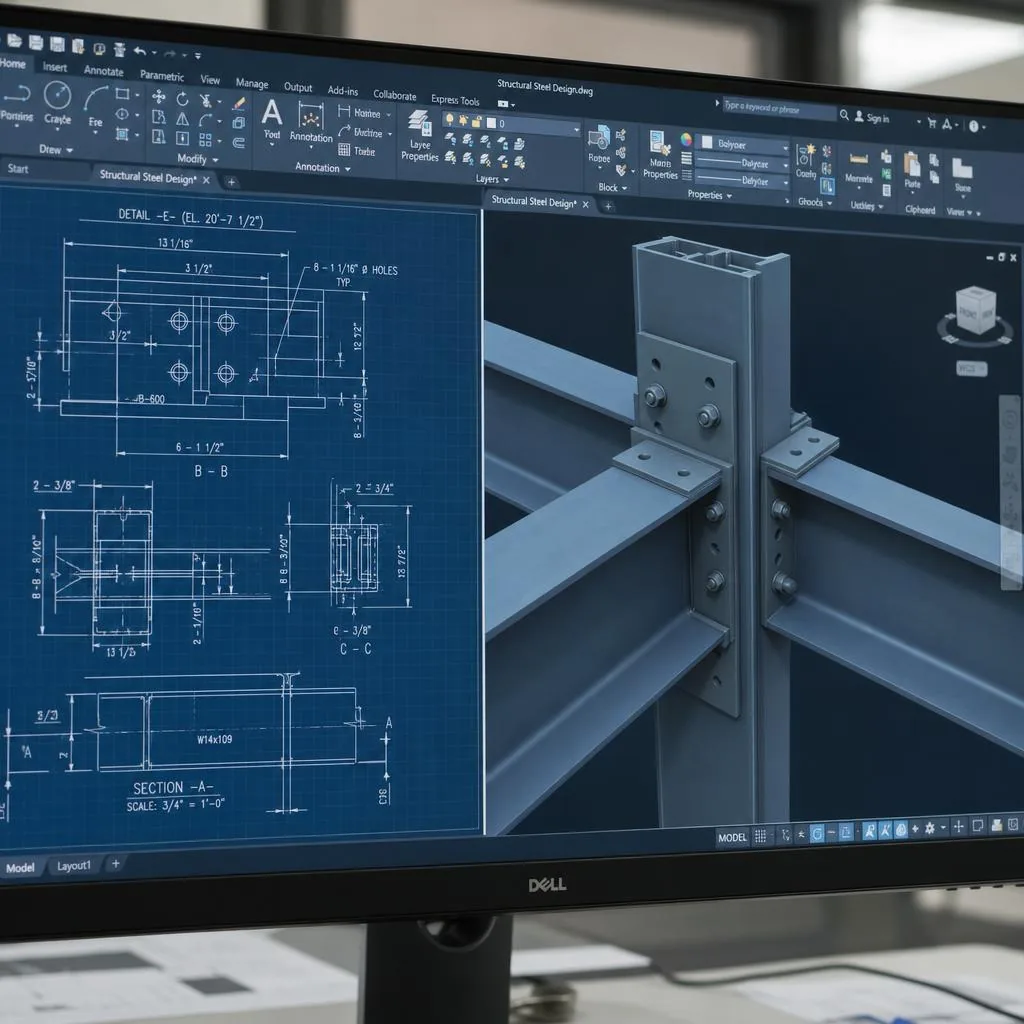

Clear shop drawings
Detail drawings for all parts
3d sketches for clear rfi's
Full scale templates for complex layouts
CNC files for beam lines, plazma cutters, etc.
Electronic material files for fabtrol

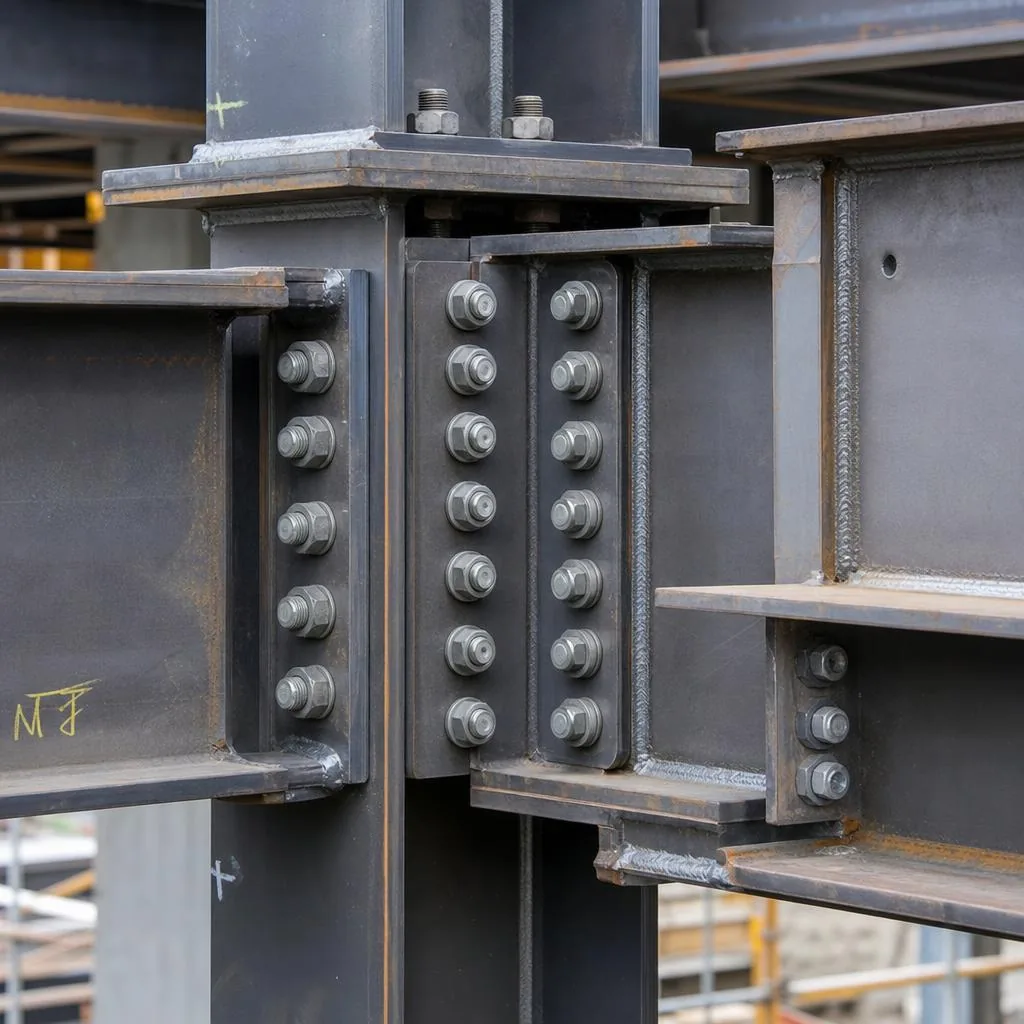

Isometric details of complex connections
Advance bill of materials list hard copy and electronic format (ie DSTV, KSS, EFE, EPC)

We are building the highest standards by offering top quality drawings in the most efficient time frame, and by using the latest technology to provide a seamless flow of information from the drafting table to the fabrication shop. Our priorities are accuracy, efficiency, and clarity on every drawing and throughout every project.


Accuracy The degree of conformity of an indicated value to an accepted standard value, or ideal value.	Efficiency The degree to which outputs are achieved in terms of productivity and input.	Clarity Clear expression free from obscurity and easy to understand.
